3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V

3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V
3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V

Large Image :  3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V

Product Details:
Brand Name: BAIDUN
Certification: CE、FC、MSDS、ROHS、UN、UL、BIS
Model Number: LF230
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: The box size is 370*260*240mm, using high-density foam, one box contains two batteries
Delivery Time: 5-8 working days
Payment Terms: Credit card, T/T,PayPal
Supply Ability: ≥30000 pieces/month

3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V

Place Of Origin: Guangdong Battery Size: LF230
Weight: 4.3KG Cycle Life: 3500 Cycles
Type: Lifepo4 Battery Pack Self^discharge Rate Per Month: <3%/month
AC Impedance Resistance: <0.25 MΩ Dimension: 174*54*208mm
Charging Temperature: 0 °C〜55 °C Discharge Temperature: -20 °C〜55 °C
High Light:

3.2V 230AH Lithium Ion Battery Packs


3.2V 230AH li ion battery pack


12V li ion battery pack 4.3KG

New Energy Lifepo4 Battery Lithium Ion Battery Packs Friendy 3.2V 230AH For DIY 12V 24V 48V

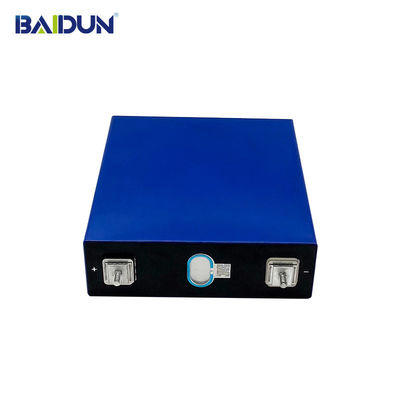

This product is a 3.2V230AH environmentally friendly Lifepo4 battery with a square aluminum shell structure, safe explosion-proof, leak-proof, green and environmentally friendly rechargeable, original brand Grade A+ quality with a unique QR code, square terminals, larger contact area, and wide application range , Can be made into 12V24V48V or even larger battery packs in series or in parallel, with high capacity and good discharge capacity, which can be used for power cars, household energy storage, and uninterrupted power supplies


Lifepo4 Battery 3.2V 230AH Basic battery parameters

Item Parameter Remark
Nominal Capacity 230.0Ah 1C , 25°C±2°C , 2.5-3.65V
Minimum energy 736.0Wh 1C , 25°C±2°C , 2.5-3.65V
Initial internal resistance ≥0.5mΩ AC , 1kHz , 30%〜40%SOC
standard 3.2V 0.5C , 25°C±2°C , 2.5-3.65V
Battery weight 4140±124g(±3%)
Charging limit voltage(Umax) 3.65V
Discharge cut-off voltage(Umin)

2.5V (T >0°C)

2.0V (T <0°C)

Charge Standard charging current 115.0A 0.5C
Discharge Standard discharge current 230.0A 1C
Cycle performance 25°C standard cycle 3500 cycles@0.5C/1C Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C/(45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery.
45°C standard cycle 1800 cycles@0.5C/1C
Operating temperature Charging temperature 0 〜60°C
Discharge temperature -30〜60°C
storage temperature 3 months 0 〜45°C
1 months -20~45°C

Aluminum bar welding


Laser welding penetration ≤ 2.0mm
The maximum pressure of the pole 700N The pole can bear the maximum vertical force without deformation
The pole can bear the maximum torque 6N.m The pole is subjected to maximum distortion without loosening
The pole can withstand the maximum temperature 130°C The pole can withstand the maximum temperature, and the plastic pad will not be deformed

Product Description:

1. We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.


2. There are Two styles of battery square terminals to choose from. They are: original terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.


3. A battery is equipped with a bus bar and two screws as standard. [Bus size: 78*54*2mm (copper nickel plating) screw size: M6]


4. Lithium battery modules are connected in parallel or in series


5. Warranty period: 3 years


3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 0

3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 1

3.2V 230AH Lithium Ion Battery Packs 4.3KG For DIY 12V 24V 48V 2

Our advantage
1. OEM customization
We can customize battery packs and provide OEM brand designs to meet your needs and requirements.
2. Perfect accessories
If you plan to assemble the battery pack yourself, you don't need to worry about not finding the right accessories. We will prepare matching busbars and screws for you.
3. High quality
We promise: The products sold by BAIDUN are verified by our long-term market, with high quality and stable performance.
4. Safe and reliable packaging
Brand new upgraded packaging, fixed with high-density all-inclusive shock-proof foam, and then packed in a 5-layer thick solid carton.
5. Better service
1) We always provide what customers need. Respond to customer questions in a timely manner. Provide the best projects and solutions, and ship orders on time.
2) We will choose the safest and most reliable shipping company to send, and track the order until you receive the goods.


Q1: How do we place an order?
A: You can chat online with our sales or send e-mail, specify the item, quantity, payment or other specifications below the order.

Q2: What certifications can your battery meet?
A: Our batteries have these certificates: CE, FC, MSDS, ROHS, UN,

Q3: How to calculate the shipping cost?
A: Please contact us before placing an order. We will calculate the specific shipping cost according to different countries, different postal codes and different order weights. We will provide you with the best shipping method and accurate shipping.

Q4: What are the acceptable delivery terms?
A: There are many delivery terms we can accept, but currently the most commonly used are FOB, CIF, EXW, DEQ, DDP, DDU, express

Q5: Can I get free samples?
A: Usually we do not provide free samples, but we can refund the sample cost when the buyer places a large order.

Q6: The delivery time set by your system is 15 days. Do I really need to wait that long?
A: No, if it is not a customized order, we usually send it out within 7 working days.

Q7: Does the shipping method to our country include tax?
A: It depends on the country and shipping method you choose. Most Asian countries, most European countries, the United States and Canada have tax-included shipping channels.

Q8: How can I confirm the quality of the products you sent me?
A: No matter how much you order, we will send you test videos and pictures of each product before shipping. Test the voltage and internal resistance of each battery.

Q9: The battery is so heavy, is it easy to break on the road?
A: This is also an issue that we are very concerned about. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.

Q10: Where is the main market of BAIDUN?
A: With many years of experience, we cooperate with many customers all over the world. Mainly from the top 3 markets are North America, Europe and Asia, and a few other countries.

Q11: What are the accepted payment types and currencies?
A: 1) The payment types we accept: credit card, CC, paypal and T/T.
2) Accepted currencies: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc
