Product Details:
|
| Size: | 174*54*205mm | Color: | Blue |
|---|---|---|---|
| Warranty: | 3 Years | Battery Size: | 3.2V230AH |
| Weight: | 4.2KG | Cycle Life: | 3500 Cycles |
| Internal Resistance: | ≤0.25mΩ | Screw Hole: | M6 |
| Terminal: | Welding Studs | Application: | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Su |
| High Light: | M6 solar energy storage battery,solar energy storage battery 3.2V 230Ah,Lifepo4 Battery 3.2V 230Ah |
||

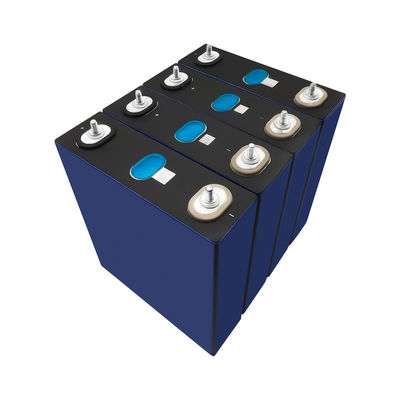

This product is a 3500 cycle 3.2 v230ah lithium iron phosphate rechargeable battery, a genuine well-known brand battery, with original QR code, A grade, oval terminals, which can be punched screw holes or welded studs. With a square aluminum shell structure, safe explosion-proof, no leakage, high discharge rate, low resistance, high capacity, long cycle life, green and environmental protection, it can be used for various electric vehicles, household energy storage, communication energy storage and solar energy storage. network requirements. It has a wide range of applications, is easy to assemble, and can be made into 12V24V48V or even larger battery packs in series or parallel
| Item | Parameter | Remark | |
| Nominal Capacity | 230.0Ah | 1C , 25°C±2°C , 2.5-3.65V | |
| Minimum energy | 736.0Wh | 1C , 25°C±2°C , 2.5-3.65V | |
| Initial internal resistance | ≤0.5mΩ | AC , 1kHz , 30%〜40%SOC | |
| standard | 3.2V | 0.5C , 25°C±2°C , 2.5-3.65V | |
| Battery weight | 4140±124g(±3%) | ||
| Charging limit voltage(Umax) | 3.65V | ||
| Discharge cut-off voltage(Umin) |
2.5V (T >0°C) 2.0V (T <0°C) |
||
| Charge | Standard charging current | 115.0A | 0.5C |
| Discharge | Standard discharge current | 230.0A | 1C |
| Cycle performance | 25°C standard cycle | 3500 cycles@0.5C/1C | Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C/(45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery. |
| 45°C standard cycle | 1800 cycles@0.5C/1C | ||
| Operating temperature | Charging temperature | 0 〜60°C | |
| Discharge temperature | -30〜60°C | ||
| storage temperature | 3 months | 0 〜45°C | |
| 1 months | -20~45°C | ||
|
Aluminum bar welding parameter |
Laser welding penetration | ≤ 2.0mm | |
| The maximum pressure of the pole | 700N | The pole can bear the maximum vertical force without deformation | |
| The pole can bear the maximum torque | 6N.m | The pole is subjected to maximum distortion without loosening | |
| The pole can withstand the maximum temperature | 130°C | The pole can withstand the maximum temperature, and the plastic pad will not be deformed | |
|
No. |
Item | Parameter | Parameter | |
| 1 | Dimension | High (total) | 207.2±0.5mm | |
| High (subject) | 204.6±0.5mm | |||
| Width | 173.93±0.5mm | |||
| Average thickness | 53.85±0.4mm (under 300kgf , 30%SOC 〜40%SOC) | |||
| 2 | Battery weight | Weight (including blue film, top patch) | 4140±124g(±3%) | |
Product Description:
1. We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.
2. There are three styles of battery square terminals to choose from. They are: original terminals, punched terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.
3. A battery is equipped with a bus bar and two screws as standard. [Bus size: 78*54*2mm (copper nickel plating) screw size: M6]
4. Lithium battery modules are connected in parallel or in series
5. Warranty period: 3 years
Application areas:
1. RV, caravan, electric bicycle/motorcycle/scooter, golf cart/baby stroller, electric scooter
2. Solar energy system, wind energy system, household energy storage system, backup system and UPS
3. Modal equipment, consumer electronics, power tools and engine starting batteries,
4. Flashlights, LED emergency lights, solar street lights, decorative lighting, yachts, lawn mowers, etc.
WFeatures of lifepo4 lithium battery:
1. Long life span, 4 times that of ordinary lead-acid batteries. If you want to upgrade from a lead-acid battery to a lithium battery, this is a good choice.
2. Safe to use. The lithium iron phosphate battery has undergone strict safety tests and will not explode even in a serious collision.
3. Large capacity, high temperature resistance, good performance, small size, light weight, environmentally friendly materials.
Why choose Baidun
1. We provide one-stop power solutions to save design time and cost for customers:
-- Package Design/Case Design/BMS Design
2. Strict quality control system to improve the competitiveness of customers:
-- 100% PCM test passed IQC
-- OQC 100% capacity test
3. On-time delivery and excellent service:
-- Fast delivery within 10 days when in stock
-- 8 hour response and 48 hour resolution
4. Experienced R&D team to become a professional power solution consultant for customers:
-- Comprehensive battery testing center (safe and reliable testing)
——Powerful ODM capabilities to meet customized design requirements
Baidun, we are an enterprise integrating design, development, production and sales. Focus on Lifepo4 battery for 12 years. The main products are lithium iron phosphate batteries for solar energy storage systems, lithium titanate batteries, ternary lithium batteries, battery packs, portable power supplies, household energy storage, commercial off-grid energy storage and solar system chargers.
The product application covers the three major fields of "power, consumption and energy storage". Widely used in: various electric vehicles, photovoltaic energy storage, household energy storage, signal systems, emergency lighting systems, security systems, communication equipment, solar and wind energy storage systems, backup power supply for fire equipment, UPS (uninterruptible power supply), outdoor Lighting, portable digital products and other industries.
We always adhere to the business philosophy of high safety, high quality and environmental protection as our core values. Provide customers with the best overall power solutions, OEM/ODM services and comprehensive after-sales support to meet the different needs of customers! Integrity and professionalism, this is also our responsibility!
Baidun, always here, is your sincere partner for the success of your career!
FAQ
Q1: How to calculate the shipping cost?
A: Please contact us before placing an order. We will calculate the specific shipping cost according to different countries, different postal codes and different order weights. We will provide you with the best shipping method and accurate shipping.
Q2: What are the acceptable delivery terms?
A: There are many delivery terms we can accept, but currently the most commonly used are FOB, CIF, EXW, DEQ, DDP, DDU, express
Q3: Can I get free samples?
A: Usually we do not provide free samples, but we can refund the sample cost when the buyer places a large order.
Q4: The delivery time set by your system is 15 days. Do I really need to wait that long?
A: No, if it is not a customized order, we usually send it out within 7 working days.
Q5: Does the shipping method to our country include tax?
A: It depends on the country and shipping method you choose. Most Asian countries, most European countries, the United States and Canada have tax-included shipping channels.
Q6: How can I confirm the quality of the products you sent me?
A: No matter how much you order, we will send you test videos and pictures of each product before shipping. Test the voltage and internal resistance of each battery.
Q7: The battery is so heavy, is it easy to break on the road?
A: This is also an issue that we are very concerned about. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.
Q8: Where is the main market of BAIDUN?
A: With many years of experience, we cooperate with many customers all over the world. Mainly from the top 3 markets are North America, Europe and Asia, and a few other countries.
Q9: What are the accepted payment types and currencies?
A: 1) The payment types we accept: credit card, CC, paypal and T/T.
2) Accepted currencies: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc
