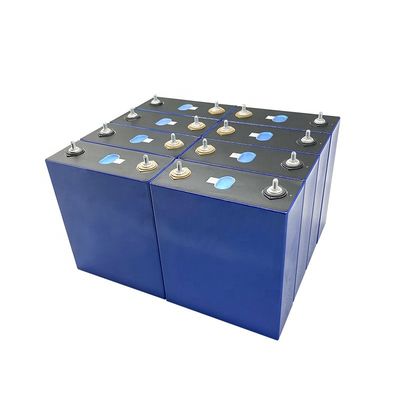

0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah

Certification
China Shenzhen Baidun New Energy Technology Co., Ltd. certification
China Shenzhen Baidun New Energy Technology Co., Ltd. certification
I'm Online Chat Now

0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah

0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah
0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah

Large Image :  0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah

Product Details:
Place of Origin: Guangdong, China
Brand Name: BAIDUN
Certification: CE、FC、ROHS
Model Number: 3.2V280(LF280K)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Two batteries in a box
Delivery Time: 5-8 working days
Payment Terms: Credit card, T/T,PayPal
Supply Ability: ≥30000 pieces/month

0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah

Description
Cycle Life: ≥6000cycle Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃ Max Discharge Current: 1C
Typical Capacity: 280.0 Ah @ 0.5C Discharge Warranty: 3YEARS
Screw Hole: M6 Terminal: Welding Studs
Nominal Voltage: 3.2V Size: 174*72*207mm
Self^discharge Rate Per Month: <3%/month
High Light:

0.5C discharge Lithium Lifepo4 Battery

,

0.5C discharge lithium LFP battery

,

lithium LFP battery 3.2v 280Ah

Rechargeable LFP Power System Battey 3.2v 280Ah Lifepo4 Prism Cell For Solar Energy Storage







This is the model 3.2V 280AH solar energy storage system Lifepo4 battery. Well-known RP brand, the battery has 6000 cycles, has the original QR code, the quality is very good, the actual capacity is higher than the specification, can be as high as 285AH or more, it has 4000 cycles of DOD80%, and the internal resistance is less than 0.25mΩ. Adopt square aluminum shell structure, safe explosion-proof and no leakage. It has a wide range of applications and can be connected in series or in parallel to make 12V24V48V or even larger battery packs. It can be used for various electric vehicle, home energy storage, communication energy storage and solar energy storage off-grid needs.





3.2V Lifepo4 280AH Battery Specification

# Item Parameter Remark
1 Nominal Capacity 280.0 Ah (25±2) °C, Standard charge and discharge
2 Typical Voltage 3.2 V
3 AC Impedance Resistance( 1 KHz) <0.25 mΩ
4 Standard charge and discharge Charge / discharge current 0.5 C/0.5 C
Cut off voltage of charge / discharge 3.65 V/2.5 V
5 Maximum charge / discharge current Continuous charge / discharge 1 C/1 C According to continuous / pulse charge and discharge ammeters
Pulse charge / discharge (30s) 2C/2C
6 Recommended scope of SOC 10% 〜90% N.A.
7 Charging Temperature 0 °C〜55 °C According to continuous / pulse charge and discharge ammeters
8 Discharging Temperature -20 °C~55 °C
9 Storage temperature Short term (within 1 month) -20°C-45°C N.A.
Long term (within 1 year) 0°C 〜35°C
10 Storage humidity range <90%
11 Self^discharge rate per month <3%/month Temperature: (25±2)°C, Storage scope of SOC: 30% 〜50%SOC
12 Dimension Width 173.7 ±0.5 mm Refer to Appendix I
13

Thickness (under 300+20 kgf,

30%〜40% SOC )

72.0 ±1.0 mm
Average thickness (200 pcs, under 300+20 kgf, 30%〜40% SOC ) 72.0 ±0.5 mm
14 High (total) 207.5 ±0.5 mm
15 High (subject) 204.6 ±0.5 mm
16 Tabs Distance 123.0±0.3 mm
17 Battery weight 5.42±0.3 kg


Main Performance

No. Item Requirements Measuring Procedure
1 Rate discharge performance at25°C

Discharge capacity/nominal capacity×l00%

A) 0.5C(A)>100%

B) 1.0C (A)>98%

After standard charge and Ih rest, discharge to 2.5V cutoff with the current of 0.5 C (A), 1.0C (A), respectively. If the discharge capacity fails to meet the technical requirements, this test is allowed to be repeated three times
2 Discharge performance at different temperature

Discharge capacity/nominal capacity×100 %

A) 55°C>95% (Cutoff 2.5V)

B) -20°C>70% (Cutoff 2.0V)

Measure the initial capacity and state of the battery: A) after standard charge and 5h rest at 55°C, discharge to 2.5V cutoff with the current of 0.5C(A); B) after standard charge at 25±2°C and 24h rest at -20°C±2°C, discharge to 2.0V cutoff with the current of 0.5C(A).
3

The

capacity retention and recovery at 25°C

Capacity Retention ≥ nomi nal capacity×95 %

Capacity Recovery ≥ nomi nal capacity×97 %

Measure the initial capacity and state of the battery, after standard charge and stored for 28 days, discharge to 2.5V cutoff with the current of 0.5C (A), calculate the remaining capacity the retention can be expressed as a percentage of nominal capacity. After standard charged and 30mins rest, calculate the discharging capacity (Ah), the recovery can be expressed as a percentage of nominal capacity. The recovery is measured with discharge current 0.5C (A) with 2.5V cut-off at (25±2) °C.
4

cycle life at

25 °C

>6000 cycle @0.5C/0.5C Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the
      initial capacity. The number of cycles is defined as the cycle life of the battery.
5

cycle life at

45 °C

>2500 cycle @0.5C/0.5C Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (45±2) °C, and then start th

e next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery.
6

End of life managem

ent

capacity/nominal capacity

<70%

During the use of the battery, the battery s hall be stopped when the end of life regul ations are exceeded.





Specification

1. About the battery:
(1)All our cells are original, Grade A, 100% brand new, guaranteed sufficient capacity.
(2) The original terminals of these batteries are laser welding points. For easier assembly, we has welded studs with length of 10-15mm for them.If you have special requirements about that, please advise.
(3) Various certification of the battery can be provided,such as CE, MSDS, UN, UL and so on.
(4) We will give you bus bars and nuts for free. (Busbar material-copper, 1 busbar+2 nuts for each unit)

2. About freight:
Please ignore the default shipping price on the website. We will calculate the specific shipping price based on
different countries, different zip codes, different order weights, and different shipping methods.

3. About ordering:
(1) Please send us an inquiry through any product link in our store.
(2) After we discuss and confirm all details (including product price, shipping price, total price), we will draft this order.
(3) You could click on the order link we drafted and follow the system
prompts to pay after verifying that all the information in the order is correct.
(4) After we receive your payment, we will send you updates,such as test pictures and videos, tracking information. You just need to wait for the arrival of the order.



Product Description
0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 0
0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 2



Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 6


Applications
0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 9


Logistics Transport
0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 12



Company Profile

0.5C Discharge LFP Lithium Lifepo4 Battery 3.2v 280Ah 14




Baidun has been cultivating new energy Lifepo4 lithium battery for 12 years!
The main products are lithium iron phosphate batteries, lithium titanate batteries, ternary lithium batteries, lithium ion battery cells, battery packs, portable power supplies, household energy storage, commercial off-grid energy storage and solar system chargers for solar energy storage systems.
The product application covers the three major fields of "power, consumption and energy storage". Widely used in: various electric vehicles, photovoltaic energy storage, household energy storage, signal system, emergency lighting system, communication equipment, solar energy and wind energy storage system, backup power supply for fire fighting equipment, UPS (uninterruptible power supply), portable digital products, etc. industry.
Baidun has always adhered to the business philosophy of high safety, high quality and environmental protection as its core values. Provide customers with the best overall power solutions, OEM/ODM services and comprehensive after-sales support to meet the different needs of customers! Integrity and professionalism, this is also our responsibility!





Why choose Baidun


1. We provide one-stop power solutions to save design time and cost for customers:
-- Package Design/Case Design/BMS Design



2. Strict quality control system to improve the competitiveness of customers:
-- 100% PCM test passed IQC
-- OQC 100% capacity test



3. On-time delivery and excellent service:
-- Fast delivery within 10 days when in stock
-- 8 hour response and 48 hour resolution



4. Experienced R&D team to become a professional power solution consultant for customers:
-- Comprehensive battery testing center (safe and reliable testing)
——Powerful ODM capabilities to meet customized design requirements












We provide one-stop battery power solutions, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM packaging and after-sales service.









Customer first

24-hour online service to solve any order problems for you!
























1. who are we?
We are based in Guangdong, China, start from 2019,sell to Southeast Asia(15.00%),Africa(10.00%),Eastern Europe(10.00%),North America(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium titanate battery,Ternary lithium battery,Lithium iron phosphate battery,Battery Pack,Solar energy series products

4. why should you buy from us not from other suppliers?
We have more than 10 years' experience in manufacturing batteries and we can assemble the cells and batteries as per your designs and requirements.Our company has two factories, they are located in Dongguan City and Huizhou City in Guangdong Province.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
