Product Details:
|
| Warranty: | 3 Years | Grade: | A+ |
|---|---|---|---|
| Terminal: | Welding Studs | Model Number: | 3.2V LF280k |
| Type: | Lifepo4 | Cycle Life: | 6000 Cycles |
| Weight: | 5.6KG | Internal Resistance:: | ≤0.25mΩ |
| Screw Hole: | M6 | Battery Size: | Prismatic |
| Usage: | Electric Car Battery Cell And Home Energy Storage | ||
| High Light: | RV Lithium Iron Phosphate Battery,solar energy storage battery 6000 Times,RV solar energy storage battery |
||

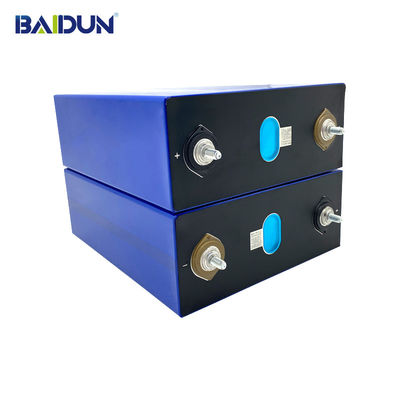

Lithium Iron Phosphate Battery Solar Energy K 6000 Times Lifepo4 3.2V 280AH Solar Cell For RV
Lifepo4 battery 3.2V 280ah General Technical Parameter
| # | Item | Parameter | Remark | |
| 1 | Nominal Capacity | 280.0 Ah | (25±2) °C, Standard charge and discharge | |
| 2 | Typical Voltage | 3.2 V | ||
| 3 | AC Impedance Resistance( 1 KHz) | <0.25 mΩ | ||
| 4 | Standard charge and discharge | Charge / discharge current | 0.5 C/0.5 C | |
| Cut off voltage of charge / discharge | 3.65 V/2.5 V | |||
| 5 | Maximum charge / discharge current | Continuous charge / discharge | 1 C/1 C | According to continuous / pulse charge and discharge ammeters |
| Pulse charge / discharge (30s) | 2C/2C | |||
| 6 | Recommended scope of SOC | 10% 〜90% | N.A. | |
| 7 | Charging Temperature | 0 °C〜55 °C | According to continuous / pulse charge and discharge ammeters | |
| 8 | Discharging Temperature | -20 °C~55 °C | ||
| # | Item | Parameter | Remark | |
| 9 | Storage temperature | Short term (within 1 month) | -20°C-45°C | N.A. |
| Long term (within 1 year) | 0°C 〜35°C | |||
| 10 | Storage humidity range | <90% | ||
| 11 | Self^discharge rate per month | <3%/month | Temperature: (25±2)°C, Storage scope of SOC: 30% 〜50%SOC | |
| 12 | Dimension | Width | 173.7 ±0.5 mm | Refer to Appendix I |
| 13 |
Thickness (under 300+20 kgf, 30%〜40% SOC ) |
72.0 ±1.0 mm | ||
| Average thickness (200 pcs, under 300+20 kgf, 30%〜40% SOC ) | 72.0 ±0.5 mm | |||
| 14 | High (total) | 207.5 ±0.5 mm | ||
| 15 | High (subject) | 204.6 ±0.5 mm | ||
| 16 | Tabs Distance | 123.0±0.3 mm | ||
| 17 | Battery weight | 5.42±0.3 kg | ||
Main Performance
| No. | Item | Requirements | Measuring Procedure |
| 1 | Rate discharge performance at25°C |
Discharge capacity/nominal capacity×l00% A) 0.5C(A)>100% B) 1.0C (A)>98% |
After standard charge and Ih rest, discharge to 2.5V cutoff with the current of 0.5 C (A), 1.0C (A), respectively. If the discharge capacity fails to meet the technical requirements, this test is allowed to be repeated three times |
| 2 | Discharge performance at different temperature |
Discharge capacity/nominal capacity×100 % A) 55°C>95% (Cutoff 2.5V) B) -20°C>70% (Cutoff 2.0V) |
Measure the initial capacity and state of the battery: A) after standard charge and 5h rest at 55°C, discharge to 2.5V cutoff with the current of 0.5C(A)； B) after standard charge at 25±2°C and 24h rest at -20°C±2°C, discharge to 2.0V cutoff with the current of 0.5C(A). |
| 3 |
The capacity retention and recovery at 25°C |
Capacity Retention ≥ nomi nal capacity×95 % Capacity Recovery ≥ nomi nal capacity×97 % |
Measure the initial capacity and state of the battery, after standard charge and stored for 28 days, discharge to 2.5V cutoff with the current of 0.5C (A), calculate the remaining capacity the retention can be expressed as a percentage of nominal capacity. After standard charged and 30mins rest, calculate the discharging capacity (Ah), the recovery can be expressed as a percentage of nominal capacity. The recovery is measured with discharge current 0.5C (A) with 2.5V cut-off at (25±2) °C. |
| 4 |
cycle life at 25 °C |
>6000 cycle @0.5C/0.5C | Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the |
| initial capacity. The number of cycles is defined as the cycle life of the battery. | |||
| 5 |
cycle life at 45 °C |
>2500 cycle @0.5C/0.5C | Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery. |
| 6 |
End of life managem ent |
capacity/nominal capacity <70% |
During the use of the battery, the battery s hall be stopped when the end of life regul ations are exceeded. |
Product Description
(1) We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.
(2) There are three styles of battery terminals to choose from. They are: original terminals, punched terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.
(3) A battery is equipped with a bus bar and two screws as standard. [Bus size: 90*20*2mm (copper nickel plated) screw size: M6]
(4) Lithium battery modules are connected in parallel or in series
(5) Warranty period: 3years
Application areas
1. Motorhomes, caravans, electric bicycles/motorcycles/scooters, golf carts/baby strollers,
2. Solar energy system, wind energy system, household energy storage system, backup system and UPS
3. Modal equipment, consumer electronics, power tools and engine starting batteries,
4. Flashlights, LED emergency lights, solar street lights, decorative lighting, yachts, lawn mowers, etc.
We provide one-stop battery power solutions, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM packaging and after-sales service.
FAQ
Q1: What are the acceptable delivery terms?
A: There are many delivery terms we can accept, but currently the most commonly used are FOB, CIF, EXW, DEQ, DDP, DDU, express
Q2: Can I get free samples?
A: Usually we do not provide free samples, but we can refund the sample cost when the buyer places a large order.
Q3: The delivery time set by your system is 15 days. Do I really need to wait that long?
A: No, if it is not a customized order, we usually send it out within 7 working days.
Q4: Does the shipping method to our country include tax?
A: It depends on the country and shipping method you choose. Most Asian countries, most European countries, the United States and Canada have tax-included shipping channels.
Q5: How can I confirm the quality of the products you sent me?
A: No matter how much you order, we will send you test videos and pictures of each product before shipping. Test the voltage and internal resistance of each battery.
Q6: The battery is so heavy, is it easy to break on the road?
A: This is also an issue that we are very concerned about. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.
Q7: Where is the main market of BAIDUN?
A: With many years of experience, we cooperate with many customers all over the world. Mainly from the top 3 markets are North America, Europe and Asia, and a few other countries.
Baidun, we are customer-centric! Provide customers with the best quality service with excellent quality, competitive price, first-class craftsmanship, safe packaging and timely delivery! Honesty and professionalism, this is also our responsibility!
