Product Details:
|
| Cycle Life: | 3500 Cycles | Battery Size: | 3.2V LF105 |
|---|---|---|---|
| Weight: | 2.1KG | Type: | Lifepo4 |
| Internal Resistance:: | ≤0.5mΩ | Terminal: | Threaded Hole |
| Screw Hole: | M4 | Warranty: | 3years |
| Place Of Origin: | Guangdong, China | Usage: | Electric Car Battery Cell And Home Energy Storage |
| High Light: | 3.2V LF105 Lithium Iron Phosphate Battery,3.2V LF105 battery pack rechargeable,battery pack rechargeable 3500 cycles |
||

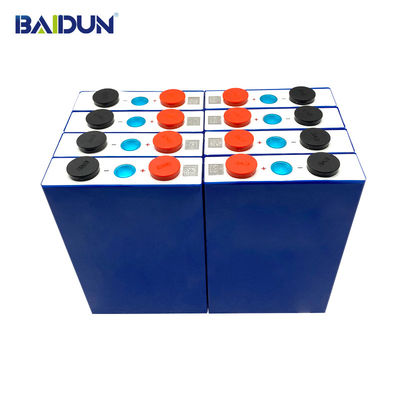

Lithium Iron Phosphate Battery Solar Energy 3.2V 105AH Lifepo4 12V 24V 48V Rechargeable Cells
This product is 3500 cycle 3.2V105AH rechargeable Lifepo4 battery, an original brand with a unique QR code, Grade A+, Hole M4.with a square aluminum shell structure, safe explosion-proof and no leakage, high discharge rate, low resistance, high capacity cycle Long life, green and environmentally friendly, it can be used for all kinds of electric vehicles, household energy storage, communication energy storage and solar energy storage off-grid needs. It has a wide range of applications, and can be made into 12V24V48V or even larger battery packs in series or parallel
Solar energy Lifepo4 3.2V 105ah General Technical Parameter
| # | Item | Parameter | Remark | |
| 1 | Nominal Capacity | 105.0 Ah | (25±2) °C, Standard charge and discharge | |
| 2 | Typical Voltage | 3.2 V | ||
| 3 | AC Impedance Resistance( 1 KHz) | <0.5 mQ | ||
| 4 | Standard charge and discharge | Charge / discharge current | 1 C/1 C | |
| Cut off voltage of charge / discharge | 3.65 V/2.5 V | |||
| 5 | Maximum charge / discharge current | Continuous charge / discharge | 2 C/12C | According to continuous / pulse charge and discharge ammeters |
| Pulse charge / discharge (30s) | 3C/3C | |||
| 6 | Recommended scope of SOC | 10% 〜90% | N.A. | |
| 7 | Charging Temperature | 0 °C〜55 °C | According to continuous / pulse charge and discharge ammeters | |
| 8 | Discharging Temperature | -20 °C~55 °C | ||
| # | Item | Parameter | Remark | |
| 9 | Storage temperature | Short term (within 1 month) | -20°C-45°C | N.A. |
| Long term (within 1 year) | 0°C 〜35°C | |||
| 10 | Storage humidity range | <95% | ||
| 11 | Self^discharge rate per month | <3%/month | Temperature: (25±2)°C, Storage scope of SOC: 30% 〜50%SOC | |
| 12 | Dimension | Width | 130.3±0.3 mm | |
| 13 |
Thickness (under 300+20 kgf, 30%〜40% SOC ) |
36.7 ±0.5 mm | ||
| Average thickness (200 pcs, under 300+20 kgf, 30%〜40% SOC ) | 36.7±0.5 mm | |||
| 14 | High (total) | 200.5 ±0.5 mm | ||
| 15 | High (subject) | 195.5 ±0.5 mm | ||
| 16 | Tabs Distance | 67.0±1.0 mm | ||
| 17 | Battery weight | 1995±50kg | ||
Product Description:
1. 1. We order batteries directly from this brand. Guaranteed Class A, brand new, genuine, sufficient capacity, original QR code, with specifications
2. There are two types of round terminals for the battery to choose from. They are: original terminals and punched terminals. Hole M4. Usually, there are screw holes for easier assembly.
3. A battery is equipped with a bus bar and two screws as standard. [Bus size: 49*38*2mm (copper nickel plated) screw size: M4]
4. Lithium battery modules are connected in parallel or in series
5. Warranty period: 3 years
Application areas:
1. RV, caravan, electric bicycle/motorcycle/scooter, golf cart/baby stroller, electric scooter
2. Solar energy system, wind energy system, household energy storage system, backup system and UPS
3. Modal equipment, consumer electronics, power tools and engine starting batteries,
4. Flashlights, LED emergency lights, solar street lights, decorative lighting, yachts, lawn mowers, etc.
WFeatures of lifepo4 lithium battery:
1. Long life span, 4 times that of ordinary lead-acid batteries. If you want to upgrade from a lead-acid battery to a lithium battery, this is a good choice.
2. Safe to use. The lithium iron phosphate battery has undergone strict safety tests and will not explode even in a serious collision.
3. Large capacity, high temperature resistance, good performance, small size, light weight, environmentally friendly materials.
