Product Details:
|
Product Name: | 12V 100Ah | Battery Pack Type: | Lifepo4 Battery |
---|---|---|---|
Cycle Life: | 4000 Cycles @1C 100%DOD | Battery Pack Nominal Voltage: | 12.8V |
Internal Resistance: | ≤30mΩ | Battery Pack Energy: | 1280Wh |
Battery Pack Nominal Capacity: | 100Ah | Cell & Method: | 4S1P |
Weight: | About 11.5KG | Dimensions (mm): | 330*173*216mm |
High Light: | 1C 100%DOD baidun 12v 4000 Cycles,1C 100%DOD baidun 12v lithium ion battery 4000 Cycles,baidun 12v lithium ion battery 4000 Cycles |

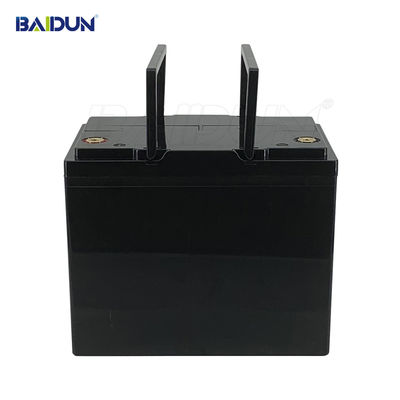

Lifipo4 lithium ion battery 12C100AH Specification
Electrical Characteristics | Battery pack Nominal Voltage | 12.8V |
Battery pack Nominal capacity | 100Ah | |
Battery pack Energy | 1280Wh | |
Internal Resistance | ≤30mΩ | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Discharge | Max Continuous discharge Current | 100A |
Max. Cranking Amps | 600A | |
Mechanical | Plastic Case | ABS |
Dimensions (mm) | 330*173*216mm Customizable |
|
Weight | about 11.5KG | |
Standard Charge | Charge Voltage | 14.6±0.2V |
LiFePO4 battery Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Battery pack standard Charger Current | 20A | |
Battery pack charging time | about 3h | |
Charge Cut-off voltage | 10V±0.2V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 25℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Color | Black Blue.Red.White |
Replace lead acid
LiFePO4 has better performance and is the most promising battery technology to replace lead-acid batteries.
✔Long cycle life The cycle life of CERRNSS LiFePO4 battery is more than 10 times that of lead-acid, and the float/calendar life is 5 times that of lead-acid. This helps to minimize replacement costs and reduce the total cost of commercial use.
✔Light weight LiFePO4 battery is less than half the weight of similar lead-acid batteries, providing customers with lighter solutions to optimize their product design and avoid unnecessary oversize.
✔ The high-power LiFePO4 battery can discharge at a high current rate while maintaining high energy capacity to maximize product performance. Under the same capacity, the working time of LiFePO4 is longer than that of lead acid.
✔Excellent safety CERRNSS LiFePO4 technology provides excellent tolerance to abuse and establishes a safety foundation at the battery level. In addition, multiple system-level protections are used to provide higher durability and reliability.
Why choose Baidun
1. We provide one-stop power supply solutions to save customers design time and cost:
- Package design/case design/BMS design
2. Strict quality control system to improve the competitiveness of customers:
- 100% PCM test passed IQC
- OQC 100% capacity test
3. On-time delivery and quality service:
- Fast delivery within 10 days of stock
- 8-hour response and 48-hour solution
4. The experienced R&D team has become the customer's professional power solution consultant:
- Comprehensive battery test center (safe and reliable test)
——Strong ODM capabilities to meet the needs of customized design
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to North America(30.00%),Southeast Asia(20.00%),Western Europe(15.00%),Domestic Market(15.00%),South America(2.00%),Eastern Europe(2.00%),Africa(2.00%),Oceania(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Battery
4. why should you buy from us not from other suppliers?
we are comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing.We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery ,LTO Battery and system,offer global technical support.OEM/ODM
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash
FAQ
Q1: How do we place an order?
A: You can chat online with our sales or send e-mail, specify the item, quantity, payment or other specifications below the order.
Q2: What certifications can your battery meet?
A: Our batteries have these certificates: CE, FC, MSDS, ROHS, UN, UL.
Q3: How to calculate the shipping cost?
A: Please contact us before placing an order. We will calculate the specific shipping cost according to different countries, different postal codes and different order weights. We will provide you with the best shipping method and accurate shipping.
Q4: What are the acceptable delivery terms?
A: There are many delivery terms we can accept, but currently the most commonly used are FOB, CIF, EXW, DEQ, DDP, DDU, express
Q5: Can I get free samples?
A: Usually we do not provide free samples, but we can refund the sample cost when the buyer places a large order.
Q6: The delivery time set by your system is 15 days. Do I really need to wait that long?
A: No, if it is not a customized order, we usually send it out within 7 working days.
Q7: Does the shipping method to our country include tax?
A: It depends on the country and shipping method you choose. Most Asian countries, most European countries, the United States and Canada have tax-included shipping channels.
Q8: How can I confirm the quality of the products you sent me?
A: No matter how much you order, we will send you test videos and pictures of each product before shipping. Test the voltage and internal resistance of each battery.
Q9: The battery is so heavy, is it easy to break on the road?
A: This is also an issue that we are very concerned about. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.
Q10: Where is the main market of BAIDUN?
A: With many years of experience, we cooperate with many customers all over the world. Mainly from the top 3 markets are North America, Europe and Asia, and a few other countries.
Q11: What are the accepted payment types and currencies?
A: 1) The payment types we accept: credit card, CC, paypal and T/T.
2) Accepted currencies: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, Chinese yuan, Swiss franc
BAIDUN is equipped with advanced production and testing facilities to provide valuable and high-quality products. Can support CANBUS/Bluetooth App/Rs485/Rs232/ scheme at present, develop battery self-heating and self-cooling (water cooling). Solve the battery problems in high and low temperature environments, with longer cycle life and greater power. These products are used in solar energy, household batteries, UPS, AGV, RVcar, telecommunication base stations, golf carts, fishing boats, and car start-stop system batteries.
