Product Details:
|
| Type: | Lifepo4 Battery | Cycle Life: | 3500 Cycles |
|---|---|---|---|
| Screw Hole: | M6 | Battery Size: | 3.2V 230AH |
| Terminal: | Welding Studs | Minimum Energy: | 736.0Wh |
| Model Numbe: | 3.2V 230ah | Components: | 174*54*208mm |
| Cycle Life: | ≥ 3500 Times | AC Impedance Resistance: | ≤0.5mΩ |
| Weight: | 4.2KG | Application: | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Su |
| High Light: | 3.2V LF230 Rechargeable Lithium Ion Battery,solar energy storage battery 3500 cycles,3.2V LF230 solar energy storage battery |
||

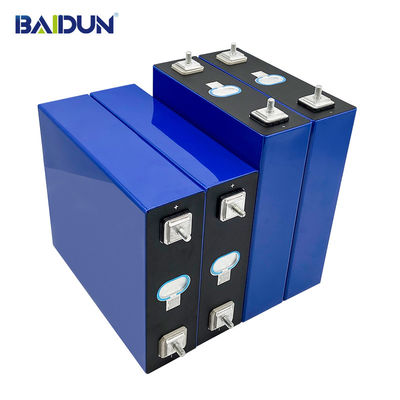

Solar Energy Lithium Ion Battery Pack 3.2V Lifepo4 Cell 230Ah For DIY 12V24V48V Battery Pack
This product is a 3500-cycle 3.2v230ah lithium iron phosphate rechargeable battery, with 3500 long cycles, original QR code, A+ level, square aluminum shell structure, safety explosion-proof, no leakage, high discharge rate, low resistance, high The capacity has a long cycle life and is environmentally friendly. It has a wide range of applications and can be used for off-grid requirements for various electric vehicles, household energy storage, communication energy storage and solar energy storage. It can be DIY connected in series or parallel to make 12V24V48V or even larger battery pack configurations.
LFP3.2V 230AH Basic battery parameters
| Item | Parameter | Remark | |
| Nominal Capacity | 230.0Ah | 1C , 25°C±2°C , 2.5-3.65V | |
| Minimum energy | 736.0Wh | 1C , 25°C±2°C , 2.5-3.65V | |
| Initial internal resistance | ≥0.5mΩ | AC , 1kHz , 30%〜40%SOC | |
| standard | 3.2V | 0.5C , 25°C±2°C , 2.5-3.65V | |
| Battery weight | 4140±124g(±3%) | ||
| Charging limit voltage(Umax) | 3.65V | ||
| Discharge cut-off voltage(Umin) |
2.5V (T >0°C) 2.0V (T <0°C) |
||
| Charge | Standard charging current | 115.0A | 0.5C |
| Discharge | Standard discharge current | 230.0A | 1C |
| Cycle performance | 25°C standard cycle | 3500 cycles@0.5C/1C | Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C/(45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery. |
| 45°C standard cycle | 1800 cycles@0.5C/1C | ||
| Operating temperature | Charging temperature | 0 〜60°C | |
| Discharge temperature | -30〜60°C | ||
| storage temperature | 3 months | 0 〜45°C | |
| 1 months | -20~45°C | ||
|
Aluminum bar welding parameter |
Laser welding penetration | ≤ 2.0mm | |
| The maximum pressure of the pole | 700N | The pole can bear the maximum vertical force without deformation | |
| The pole can bear the maximum torque | 6N.m | The pole is subjected to maximum distortion without loosening | |
| The pole can withstand the maximum temperature | 130°C | The pole can withstand the maximum temperature, and the plastic pad will not be deformed | |
|
No. |
Item | Parameter | Parameter | |
| 1 | Dimension | High (total) | 207.2±0.5mm | |
| High (subject) | 204.6±0.5mm | |||
| Width | 173.93±0.5mm | |||
| Average thickness | 53.85±0.4mm (under 300kgf , 30%SOC 〜40%SOC) | |||
| 2 | Battery weight | Weight (including blue film, top patch) | 4140±124g(±3%) | |
1. Motorhomes, caravans, electric bicycles/motorcycles/scooters, golf carts/baby strollers,
2. Solar energy system, wind energy system, household energy storage system, backup system and UPS
3. Modal equipment, consumer electronics, power tools and engine starting batteries,
4. Flashlights, LED emergency lights, solar street lights, decorative lighting, yachts, lawn mowers, etc.
Baidun, we are an enterprise integrating design, development, production and sales. Focus on Lifepo4 battery for 12 years. The main products are lithium iron phosphate batteries, lithium titanate batteries, ternary lithium batteries, battery packs, portable power supplies, household energy storage, commercial off-grid energy storage and solar system chargers for solar energy storage systems.
Product applications cover the three major areas of "power, consumption, and energy storage". Widely used in: various electric vehicles, photovoltaic energy storage, household energy storage, signal systems, emergency lighting systems, security systems, communication equipment, solar and wind energy storage systems, backup power supplies for fire-fighting equipment, UPS (uninterruptible power supply), outdoor Lighting, portable digital products and other industries.
We always adhere to the business philosophy of high safety, high quality and environmental protection as our core values. Provide customers with the best overall power supply solutions, OEM/ODM services and comprehensive after-sales support to meet the different needs of customers! Honesty and professionalism, this is also our responsibility!
Baidun, always here, is your sincere partner for success in your career!
1. Where is the main market of BAIDUN?
With many years of experience, we cooperate with many customers all over the world. Mainly from the top 3 markets are North America, Europe and Asia, and a few other countries.
2. How do we guarantee the quality?
It is always a pre-production sample before mass production;
Always perform a final inspection before shipment;
3. What can you buy from us?
Lithium batteries, battery packs, chargers, photovoltaic off-grid energy storage systems
4. The battery is so heavy, is it easy to break on the road?
This is also an issue that we are very concerned about. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.
5. What services can we provide?
Accepted delivery terms: FOB, EXW;
Accepted payment currencies: U.S. dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound sterling, Chinese yuan, Swiss franc;
Accepted payment types: T/T, L/C, credit card, PayPal, Western Union, cash;
Language: 17 languages
6. The delivery time set by your system is 15 days, do I really need to wait that long?
No, if it is not a customized order, we usually send it out within 7 working days.
We provide one-stop battery power solutions, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM packaging and after-sales service.
