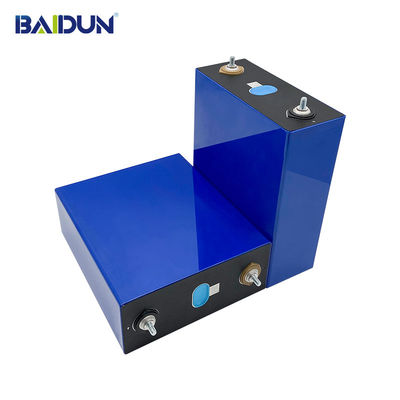

Product Details:
|
| Nominal Capacity: | 280AH | Charge / Discharge Current: | 0.5 C/0.5 C |
|---|---|---|---|
| Nominal Voltage: | 3.2V | Rated Capacity: | 280K |
| AC Impedance Resistance: | ≤0.25mΩ | Max Charge Current: | 1C |
| Charging Temperature: | 0℃~55℃ | Storage Humidity: | <90% |
| Self^discharge Rate Per Month: | <3%/month | Cycle Life: | 6000times |
| Size: | 172*208*72mm | Weight: | 5.6KG |
| High Light: | OEM Rechargeable Lithium Ion EV 3.2V 280K,OEM bicycle lithium battery EV 3.2V 280K,bicycle lithium battery pack EV 3.2V 280K |
||
| # | Item | Parameter | Remark | |
| 1 | Nominal Capacity | 280.0 Ah | (25±2) °C, Standard charge and discharge | |
| 2 | Typical Voltage | 3.2 V | ||
| 3 | AC Impedance Resistance( 1 KHz) | <0.25 mΩ | ||
| 4 | Standard charge and discharge | Charge / discharge current | 0.5 C/0.5 C | |
| Cut off voltage of charge / discharge | 3.65 V/2.5 V | |||
| 5 | Maximum charge / discharge current | Continuous charge / discharge | 1 C/1 C | According to continuous / pulse charge and discharge ammeters |
| Pulse charge / discharge (30s) | 2C/2C | |||
| 6 | Recommended scope of SOC | 10% 〜90% | N.A. | |
| 7 | Charging Temperature | 0 °C〜55 °C | According to continuous / pulse charge and discharge ammeters | |
| 8 | Discharging Temperature | -20 °C~55 °C | ||
Main Performance
| No. | Item | Requirements | Measuring Procedure |
| 1 | Rate discharge performance at25°C |
Discharge capacity/nominal capacity×l00% A) 0.5C(A)>100% B) 1.0C (A)>98% |
After standard charge and Ih rest, discharge to 2.5V cutoff with the current of 0.5 C (A), 1.0C (A), respectively. If the discharge capacity fails to meet the technical requirements, this test is allowed to be repeated three times |
| 2 | Discharge performance at different temperature |
Discharge capacity/nominal capacity×100 % A) 55°C>95% (Cutoff 2.5V) B) -20°C>70% (Cutoff 2.0V) |
Measure the initial capacity and state of the battery: A) after standard charge and 5h rest at 55°C, discharge to 2.5V cutoff with the current of 0.5C(A)； B) after standard charge at 25±2°C and 24h rest at -20°C±2°C, discharge to 2.0V cutoff with the current of 0.5C(A). |
| 3 |
The capacity retention and recovery at 25°C |
Capacity Retention ≥ nomi nal capacity×95 % Capacity Recovery ≥ nomi nal capacity×97 % |
Measure the initial capacity and state of the battery, after standard charge and stored for 28 days, discharge to 2.5V cutoff with the current of 0.5C (A), calculate the remaining capacity the retention can be expressed as a percentage of nominal capacity. After standard charged and 30mins rest, calculate the discharging capacity (Ah), the recovery can be expressed as a percentage of nominal capacity. The recovery is measured with discharge current 0.5C (A) with 2.5V cut-off at (25±2) °C. |
| 4 |
cycle life at 25 °C |
>6000 cycle @0.5C/0.5C | Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (25±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the |
| initial capacity. The number of cycles is defined as the cycle life of the battery. | |||
| 5 |
cycle life at 45 °C |
>2500 cycle @0.5C/0.5C |
Under the 300kgf clamp, after standard charged and 30mins rest, discharge to 2.5V cutoff with the current of 0.5C(A) at (45±2) °C, and then start the next cycle, end with the capacity decreasing to 80% of the initial capacity. The number of cycles is defined as the cycle life of the battery. |
Product Description
(1) We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.
(2) There are three styles of battery terminals to choose from. They are: original terminals, punched terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.
(3) A battery is equipped with a bus bar and two screws as standard. [Bus size: 90*20*2mm (copper nickel plated) screw size: M6]
(4) Lithium battery modules are connected in parallel or in series
(5) Warranty period: 3years
Application areas
1. Motorhomes, caravans, electric bicycles/motorcycles/scooters, golf carts/baby strollers,
2. Solar energy system, wind energy system, household energy storage system, backup system and UPS
3. Modal equipment, consumer electronics, power tools and engine starting batteries,
4. Flashlights, LED emergency lights, solar street lights, decorative lighting, yachts, lawn mowers, etc.
Shenzhen Baidun New Energy Co., Ltd. is a professional company focusing on environmental protection Lifepo4 batteries, integrating R&D, manufacturing and sales. Our company has two factories, located in Dongguan and Huizhou, Guangdong Province, and has 12 years of industry experience. The main products are lithium iron phosphate batteries with different capacities, lithium titanate batteries, ternary lithium batteries, battery packs and photovoltaics. Our batteries are widely used in photovoltaic energy storage, communication equipment, signal systems, emergency lighting systems, security systems, telecommunications, solar and wind energy storage systems, backup power supplies for fire-fighting equipment, portable digital products, and household energy storage industries.
We respect integrity and professionalism, always take high safety, high quality and environmental protection as our core values, and assume social responsibility!
Bai Dun, always here! Is your truly successful business partner! Create a win-win situation with you and your company for a better future!
